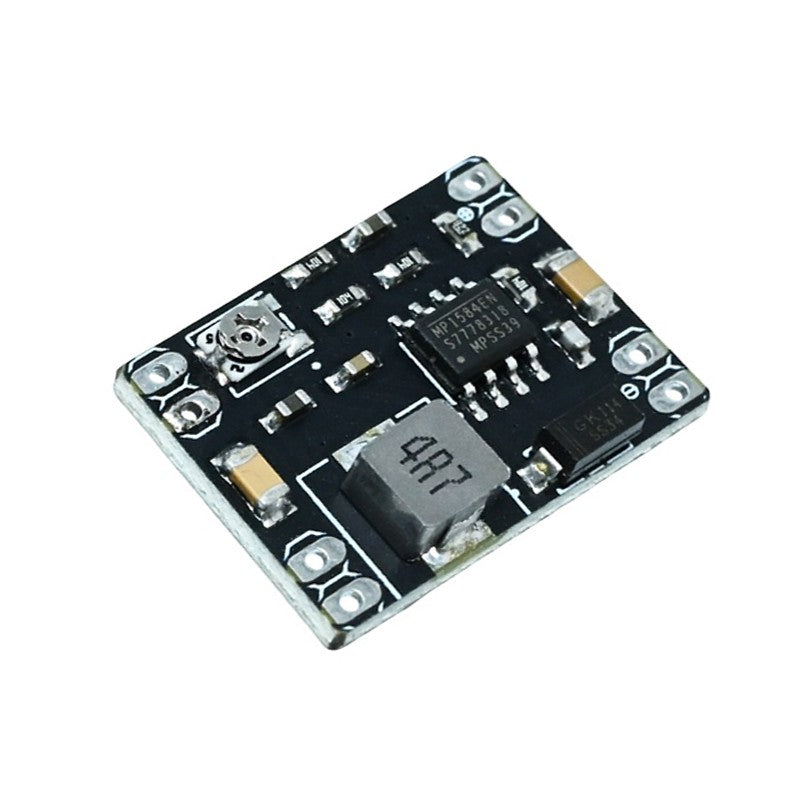

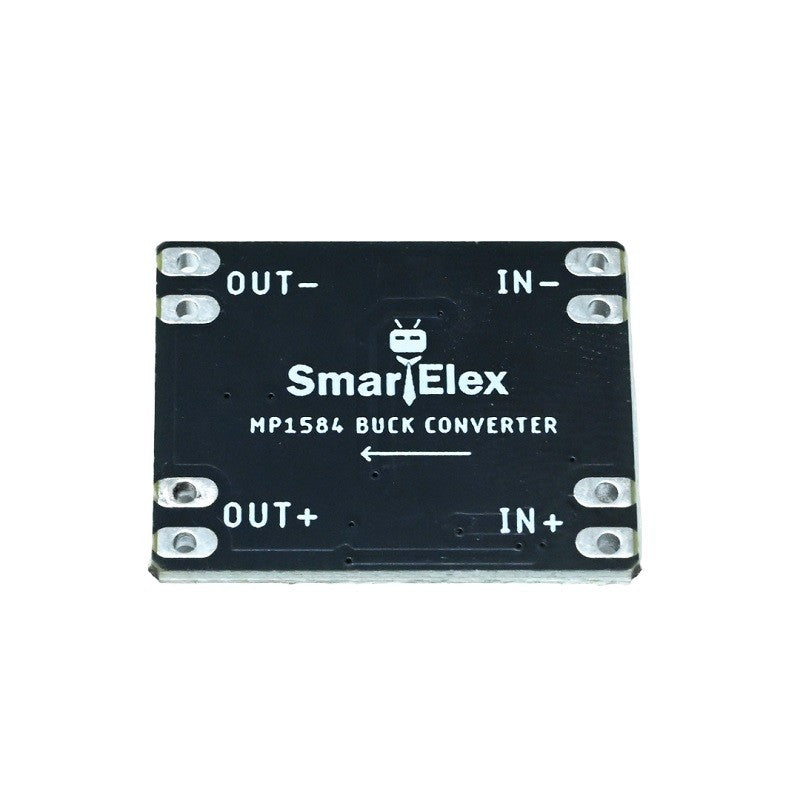

Mini MP1584 DC-DC 3A Adjustable Buck Module (Made In India)

The SmartElex Mini MP1584 DC-DC 3A Adjustable Buck Module is ultra small adjustable 0.8V to 20V output DC to DC step-down Buck converter that uses an MP1584EN high frequency switching regulator and integrated high voltage power MOSFET. It features a soft start, thermal shutdown, and under-voltage lockout (UVLO) to protect the module from operating at insufficient supply voltage. Small size, lightweight, low internal power consumption, and wide input voltage range of 4.5V to 28V make this module suitable for a variety of different applications where small size and lightweight voltage conversion is needed, including RC cars and airplanes, quadcopters, robotics, Arduino modules, and DIY devices.

Applications:

DIY 8051 / AVR / ARM / PIC / Arduino / Raspberry-Pi projects

Robotics

Breadboard power supply

Manual speed adjustment of small DC motors

Power Supply for RC project planes, cars, helicopters

Universal Battery Elimination Circuit (UBEC) for 2S-6S lipo battery pack

Receiver/servo power supply

Communications equipment power supply

Mobile equipment power supplies

Note: Set voltage using a voltmeter and adjust to proper output voltage before installing in your device. Note: PCB board color may be different from the actual product.

Features :

Wide 4.5V to 28V Operating Input Range

High-Efficiency Pulse Skipping Mode for Light Load

Ceramic Capacitor Stable

Internal Soft-Start

Internally Set Current Limit without a Current Sensing Resistor

Package Includes :

1 x SmartElex Mini MP1584 DC-DC 3A Adjustable Buck Module

Specification:

Output Voltage: 1.8A

Switching frequency Typical: 1MHz, Maximum: 1.5MHz

Conversion efficiency 0.96

Operating Temperature (°C): -50 to 85

Length (mm): 22

Width (mm): 17

Output Ripple <30mV

Shipping Weight 0.05 kg

Shipping Dimensions 3.5 × 3 × 1.5 cm
