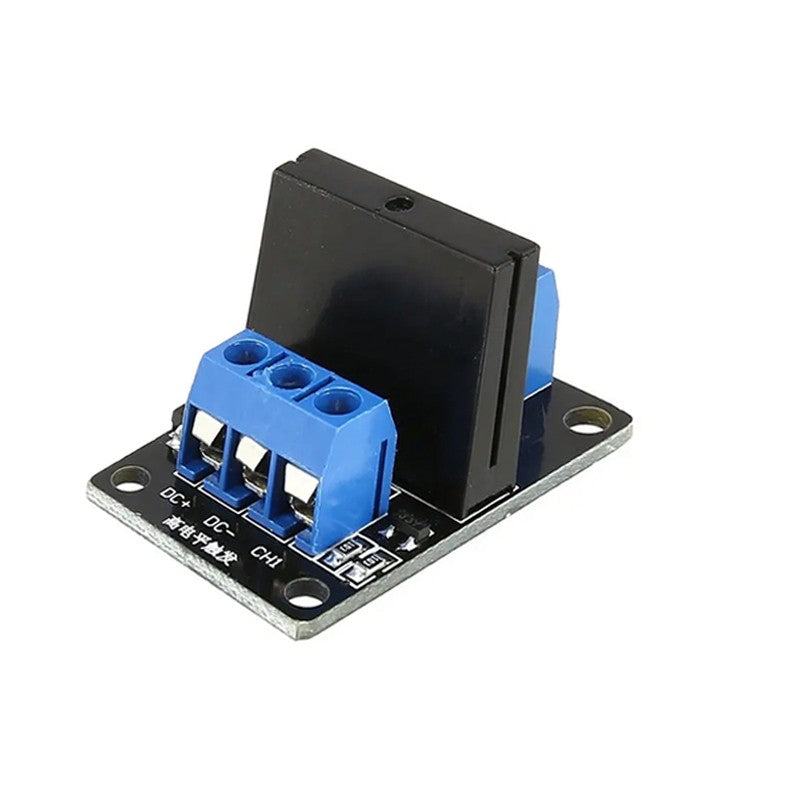

1 Channel 12V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive

It is an 1 Channel OMRON 12V 240V solid state relay 2A, output with resistance type fuse 240V 2A. The input control signal voltage for the relay module is: (the state of the 0-2.5V low-level relay OFF; the state of the 3-5V high-level relay ON). It refers to a high-level trigger signal between the trigger terminal (IN) and the negative power supply forward voltage is usually triggered by the positive electrode and the power supply connected to a terminal Types of trigger mode, when the trigger end of the positive electrode voltage reaches the voltage or is triggered, the relay is energized. It has the blue KF301 terminal is connected to the line of control.

Package Includes:

1 x 1 Channel 12V Relay Module Solid State High-Level SSR DC Control 250V 2A with Resistive

Specification:

Model: Relay Module

No. of Channels: 1

Operating Voltage (VDC): 12

Supply Current(mA) 2mA

Switching Voltage (VAC) 5060@2A

Operating Temperature (°C): -40 to 85

Opt. Relative Humidity(RH) 20% ～ 85%

Storage Conditions – 65 to 125℃

Shipping Weight 0.011 kg

Shipping Dimensions 10 × 6 × 3 cm
