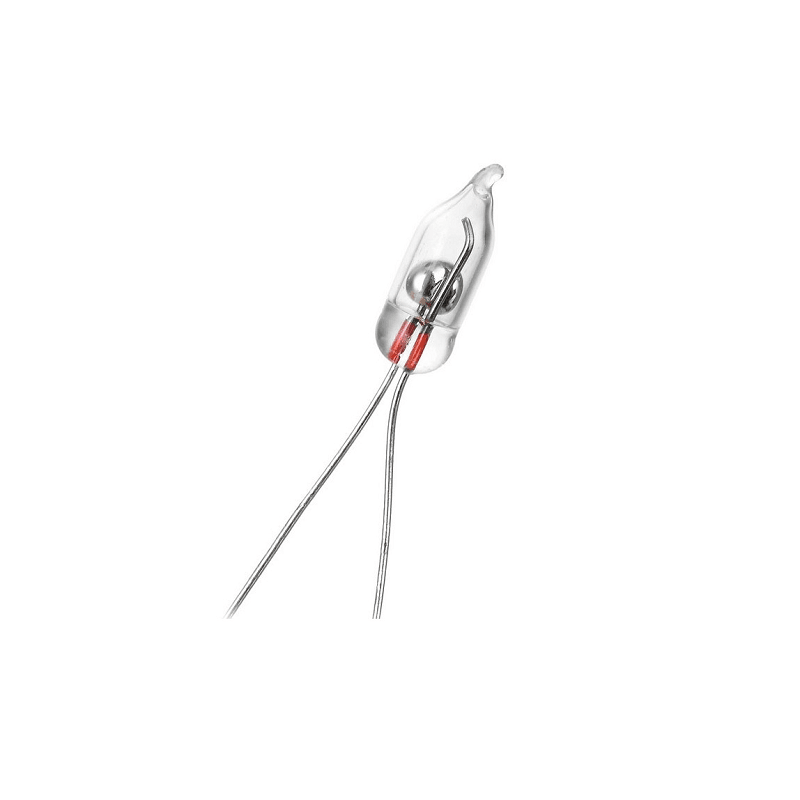

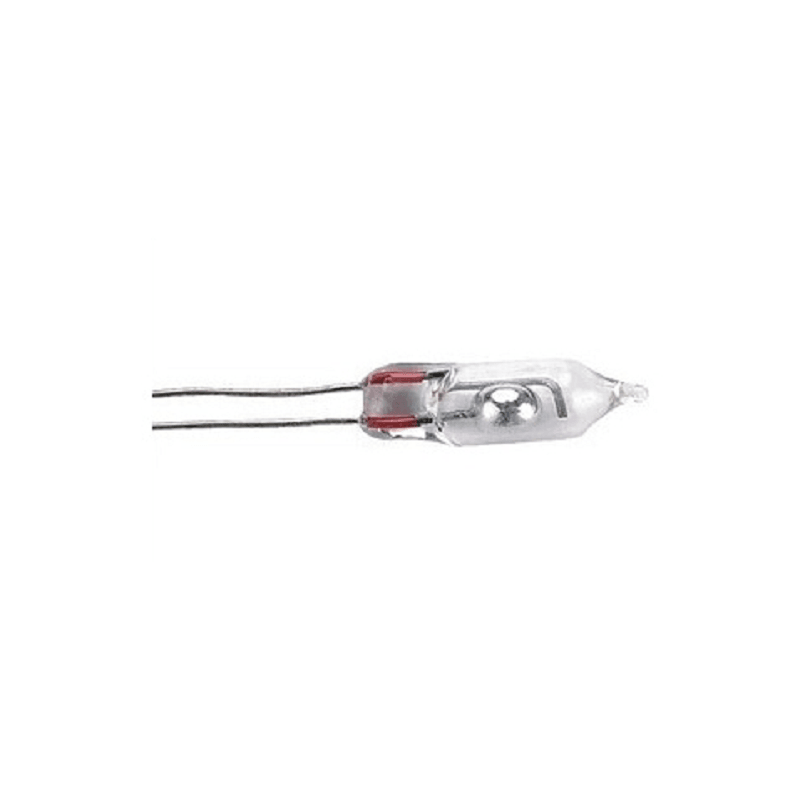

Mercury Tilt Switch – 10Pcs.

Mercury switches have one or more sets of electrical contacts in a sealed glass envelope that contains a small quantity of mercury. The envelope may also contain hydrogen at pressure, an inert gas, or a vacuum. Gravity constantly pulls the drop of mercury to the lowest point in the envelope. When the switch is tilted in the appropriate direction, the mercury touches a set of contacts, thus completing an electrical circuit. Tilting the switch in the opposite direction moves the mercury away from that set of contacts, breaking that circuit.

Features:

The contacts are enclosed, so oxidation of the contact points is impossible.

In hazardous locations, interrupting the circuit does not emit a spark that could ignite flammable gases.

Contacts stay clean, and even if an internal arc occurs, the contact surfaces renew on every operation, so they don't wear out.

Even a small drop of mercury has low resistance, so switches can carry useful amounts of current in a small size.

The sensitivity of the drop to gravity provides a unique sensing function and lends itself to simple, low-force mechanisms for manual or automatic operation.

The switches are quiet, as no contacts abruptly snap together.

The mass of the moving mercury drop provides an over-center effect to avoid chattering as the switch tilts.

Package Includes:

1 x Mercury Tilt Switch - 10Pcs.

Specification:

Model: Tilt Sensor Module

Operating Voltage (VDC): 3.3 to 5

Diameter (mm): 4

Length (mm): 35

Shipping Weight 0.01 kg

Shipping Dimensions 8 × 7 × 1 cm
