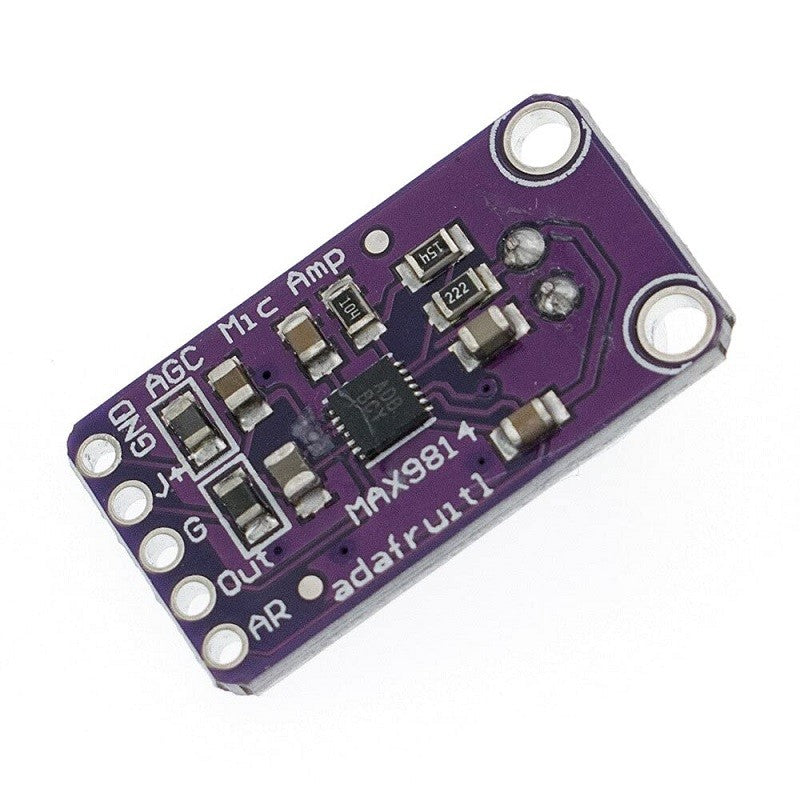

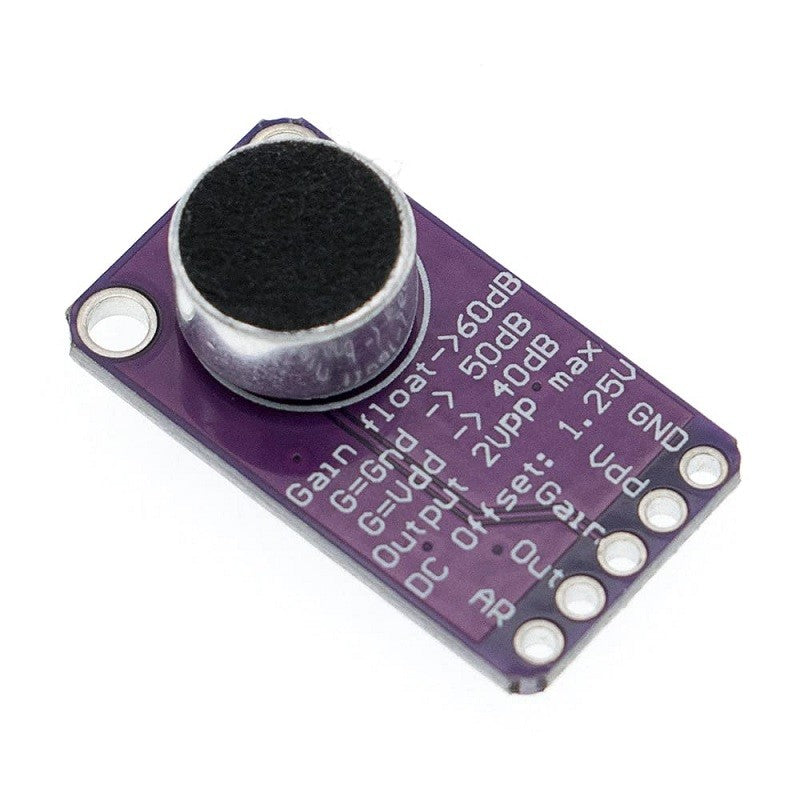

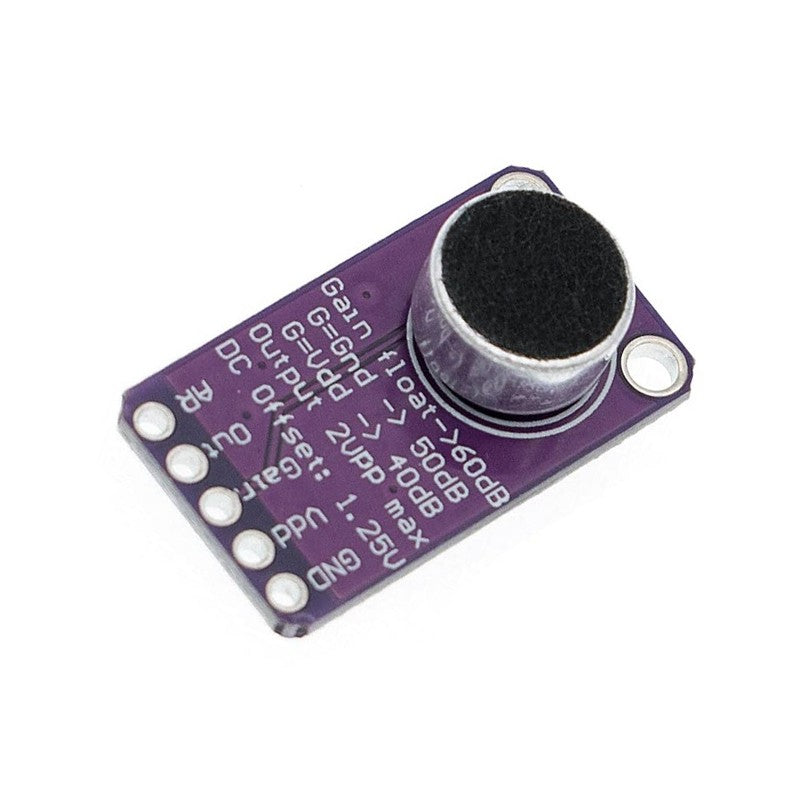

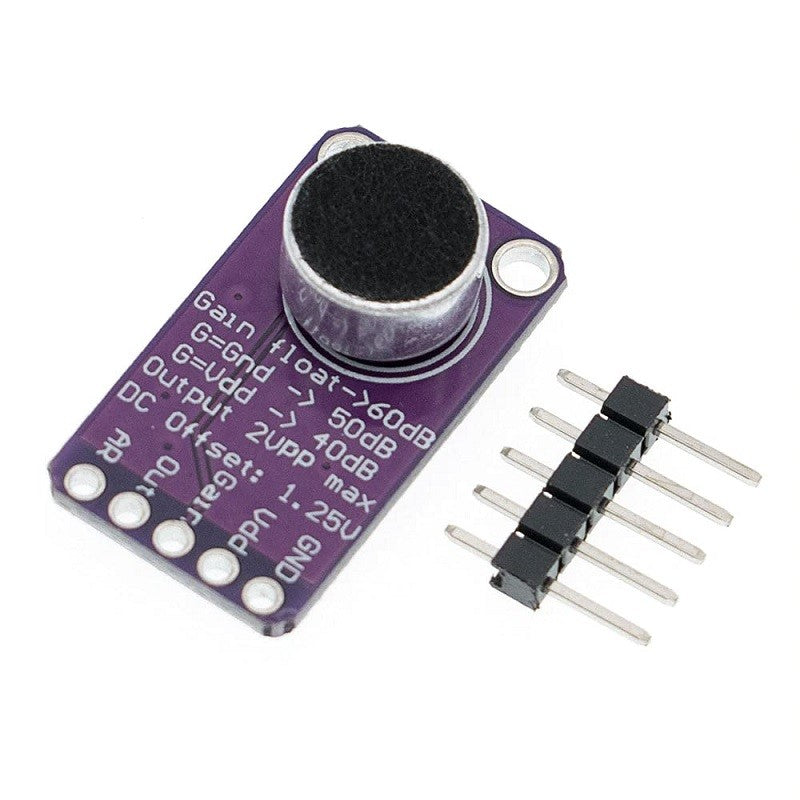

MAX9814 High Performance Microphone AGC Amplifier Module CMA- 4544PF-W

The MAX9814 High-Performance Microphone AGC Amplifier, model CMA-4544PF-W, is an advanced audio solution that excels in capturing and amplifying sound with exceptional clarity. Featuring an Automatic Gain Control (AGC) system, it dynamically adjusts the amplification level to accommodate varying audio input levels, ensuring consistent and high-quality output. The compact module is equipped with the MAX9814 amplifier chip, known for its precision and reliability. With a user-friendly design, it's suitable for diverse applications, from voice recording to audio surveillance. The CMA-4544PF-W offers a reliable, compact, and efficient solution for integrating superior audio performance into electronic projects and devices.

Features:

Automatic Gain Control (AGC)

Programmable action time

Programmable action and release time ratio

Low-power shutdown mode

Built-in 2 Volt low noise microphone bias

Low Input-Referred Noise Density of 30nV/

Low THD: 0.04% (typical)

Package Includes:

1 x MAX9814 High-Performance Microphone AGC Amplifier Module CMA- 4544PF-W

Specification:

Operating Voltage (VDC): 2.7 to 5.5

Current (mA): 3

Output 2Vpp on 1.25V bias

Frequency Response 20Hz – 20 KHz

Shipping Weight 0.003 kg

Shipping Dimensions 7 × 6 × 3 cm
