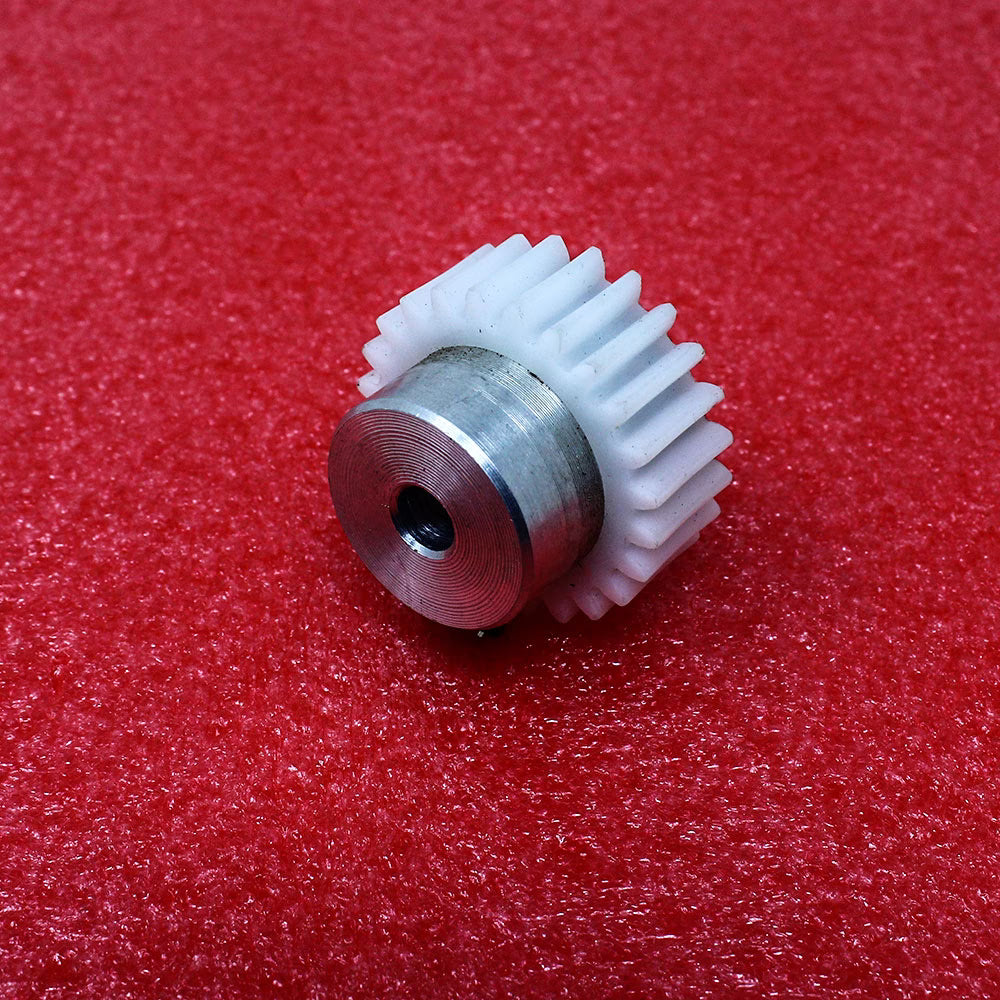

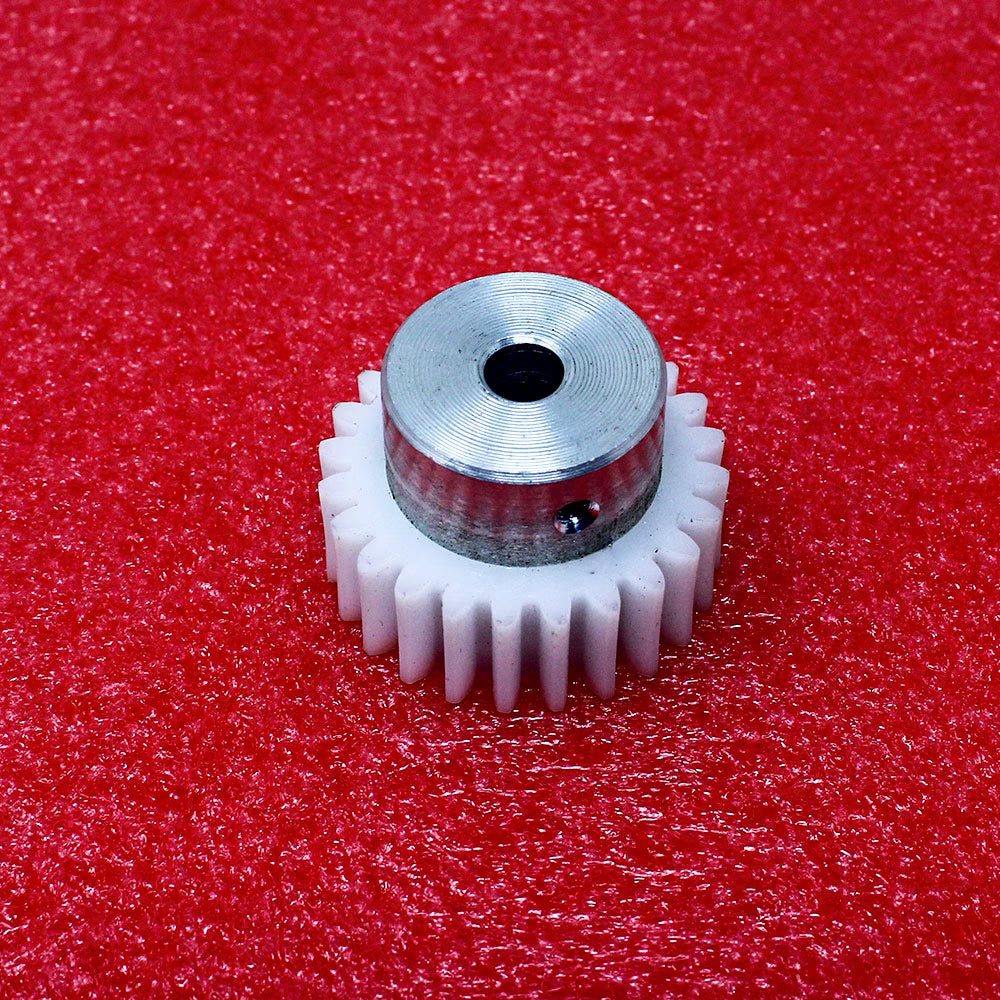

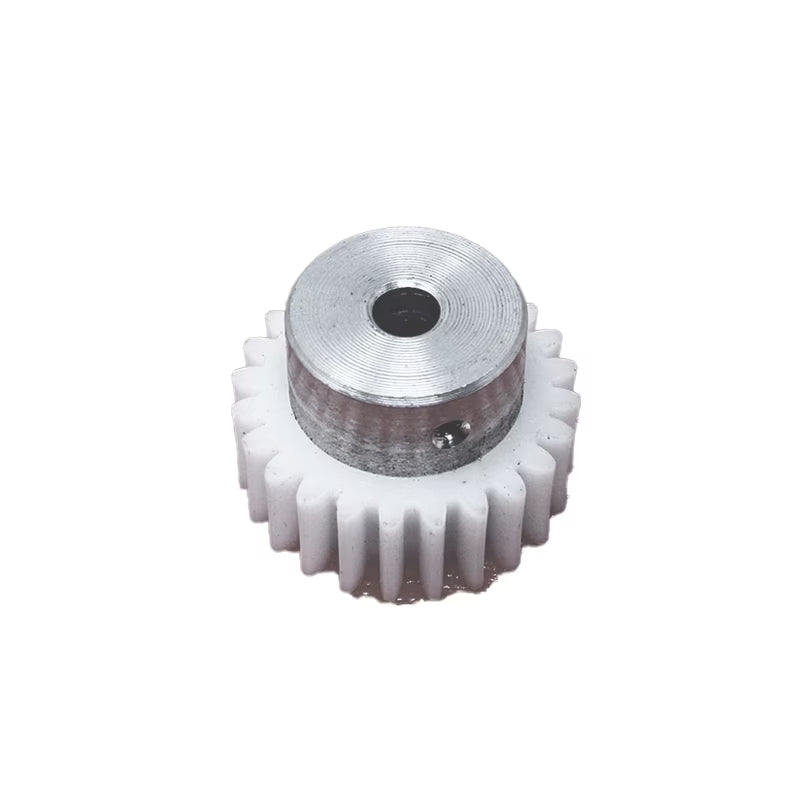

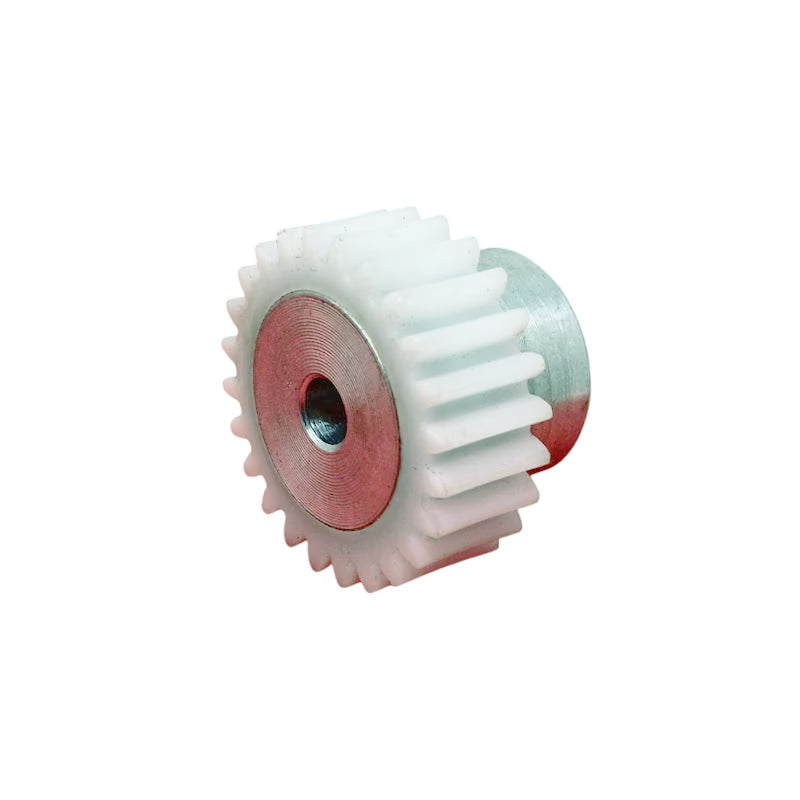

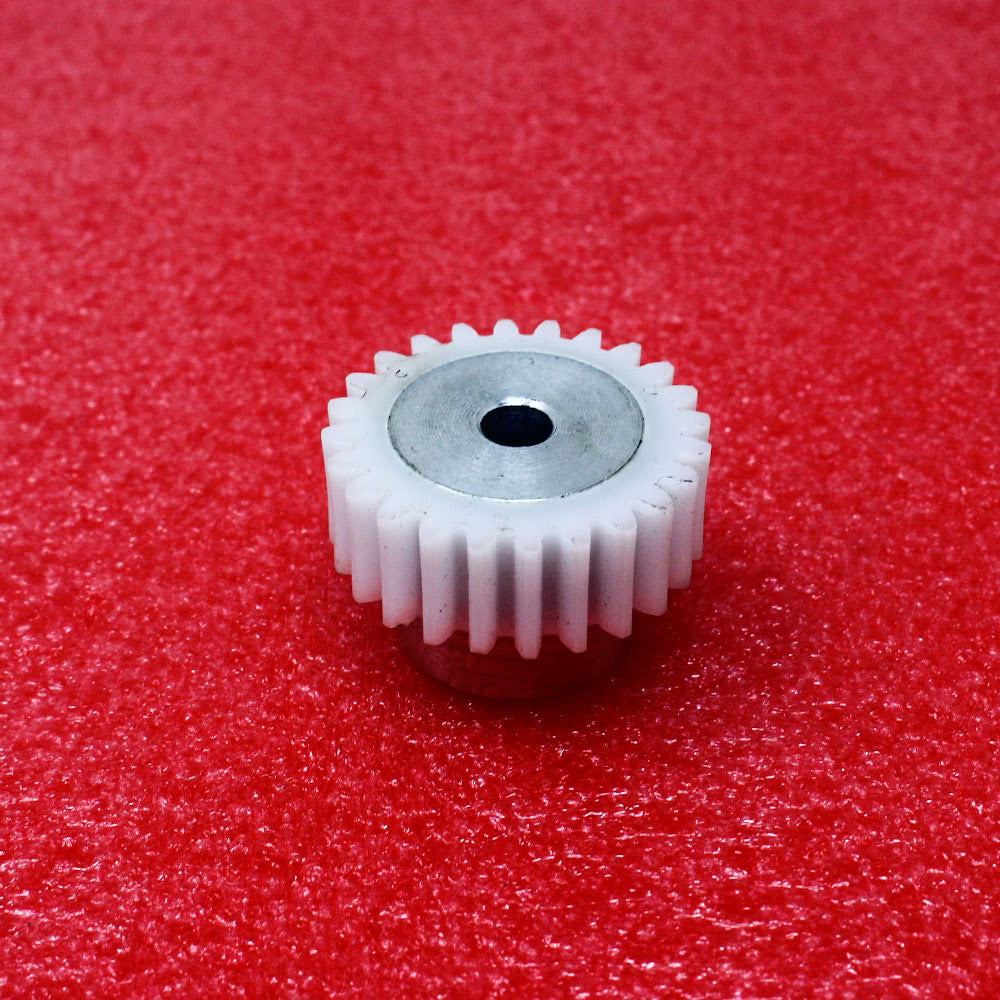

24 Teeth Plastic Spur Gear with Metal Insert (1.25M-24T-6-30)

Are you Confused in selecting Appropriate gears for your desired Application? Here is Small Article to help you to understand Gear Nomenclature and Selections Guide. (Click Here)

Gears play a huge role in much of the technology around today. For example, robotics assemblies, car engines, drills, lathes, mills, cd/DVD Drives, printers, mechanical watches, children's toys, in fact, gears are almost everywhere there are motors and engines which produce a rotational movement.

Nylon Metal Insert Spur gear has significant advantages over their metal counterparts in several ways. Nylon Materials used in gears are, in general, engineering plastics such as polyacetal (POM) and MC Nylon which is essentially polyamide resin and metal combined with it Aluminium which provide extra heavy torque handling capacity to gear without being heavy in weight. This allows for weight reduction in machine design. They are quiet, absorb vibration and do not need lubrication.

Applications:

1. They are used to reverse the direction of rotation, for example when selecting reverse in your car.
2. Gears are also used to transfer rotational motion to a different axis.
3. Gears are used to alter the speed of rotation which in the same way can be used to alter the end turning force or torque available.

Features:

1. Good Quality Material
2. Light Weight
3. Heavy Duty and Long Life
4. Good Temperature and Environmental Resistance

Package Includes:

1 x Nylon Metal Insert Spur gear (1.25M-24T-6-30)

Specification:

Pitch (Module):1.25No. of Teeth:24Face Width (FW) mm12.15Total Width (W)22.55Internal Diameter (mm):6Outer Diameter (mm):32.3Mounting Hole PCD (mm)30Gear Material:Nylon and AluminiumWeight (g):27ColorBlack and WhiteShipping Weight0.03 kgShipping Dimensions8 × 6 × 3 cm
