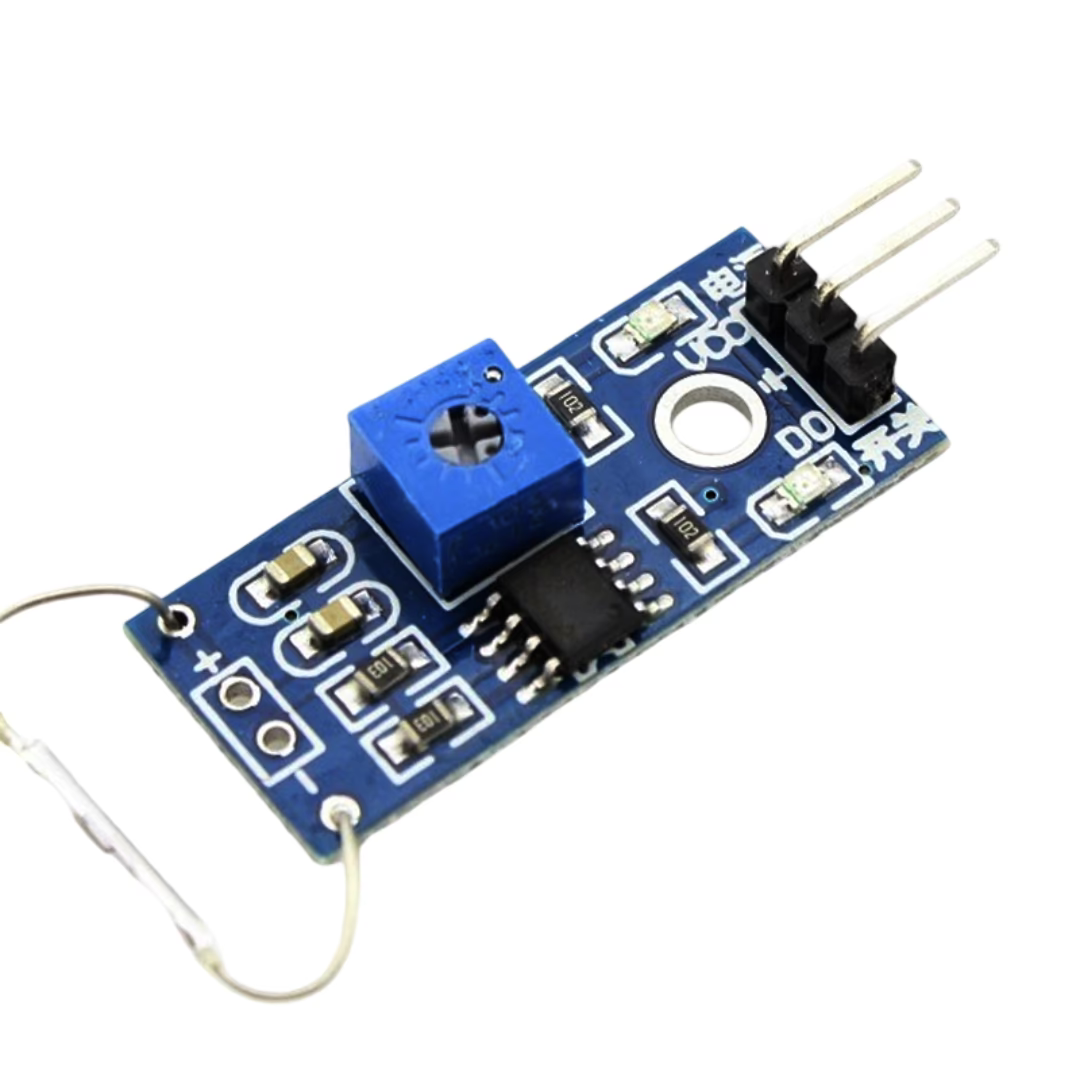

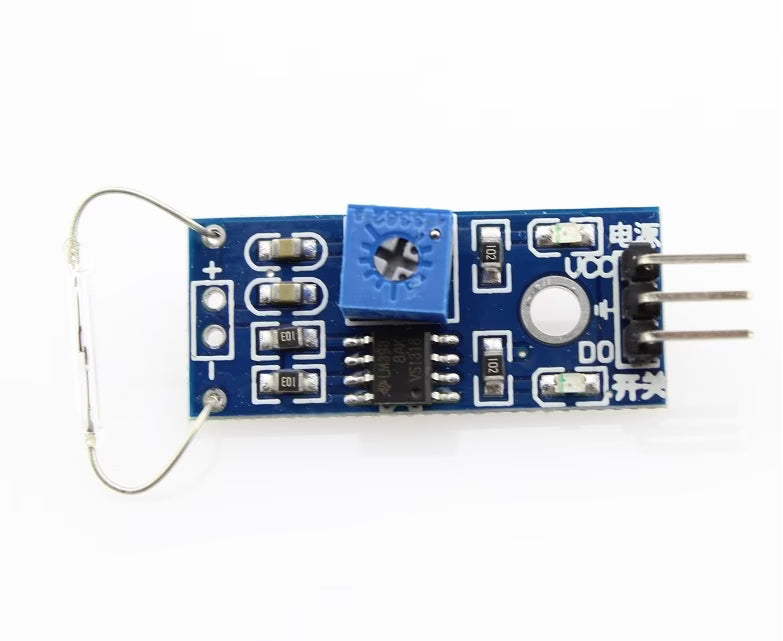

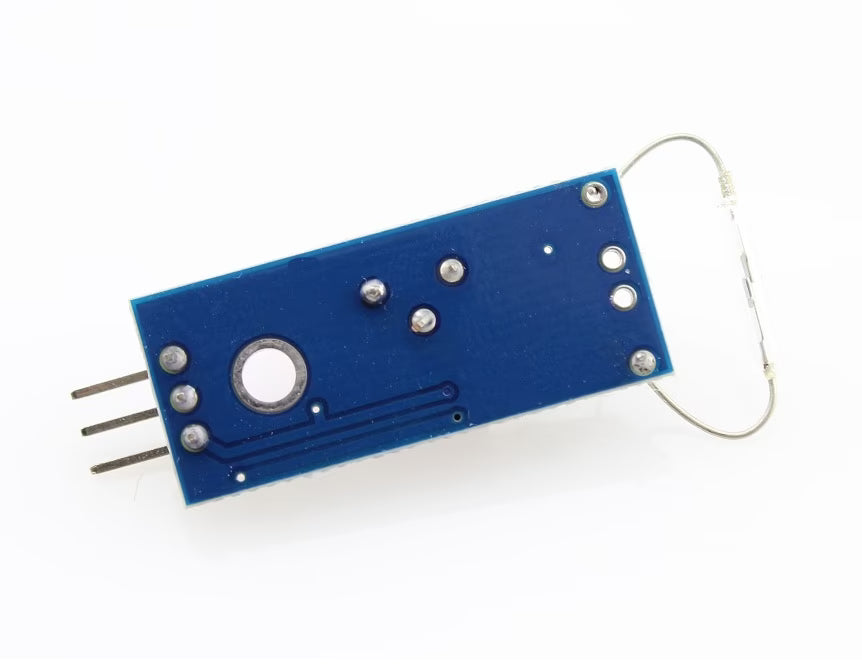

Reed Switch Module
Rs. 45.00
Sale price
Rs. 45.00
Regular price
Skip to product information
Reed Switch Module
766371
Rs. 45.00
Sale price
Rs. 45.00
Regular price
This module can be applied in Program-controlled switches, copiers, washing machines, refrigerators, cameras, Disinfection cabinet, door, window magnetic, electromagnetic relays, electronic weighing, level meter, gas meter, water meter, and so on.
Specifications and Features:
- Clean, good waveform driving ability, more than 15mA.
- Working voltage 3.3V-5
- Output format: digital switching output (0 and 1)
- A fixed bolt holes for easy installation
- PCB size: 3.2cm x 1.4cm
- Digital output using a wide voltage LM393 comparator
Package Includes:
1 x Reed Switch ModuleSpecification:
Item Type:Electronic SwitchOperating Voltage (VDC):3.3 to 5Operating Current (mA):100Output FormatDigital switching output ( 0 and 1 )Length (mm):32Width (mm):14Weight (g):2Shipping Weight0.005 kgShipping Dimensions4 × 2 × 1 cm
