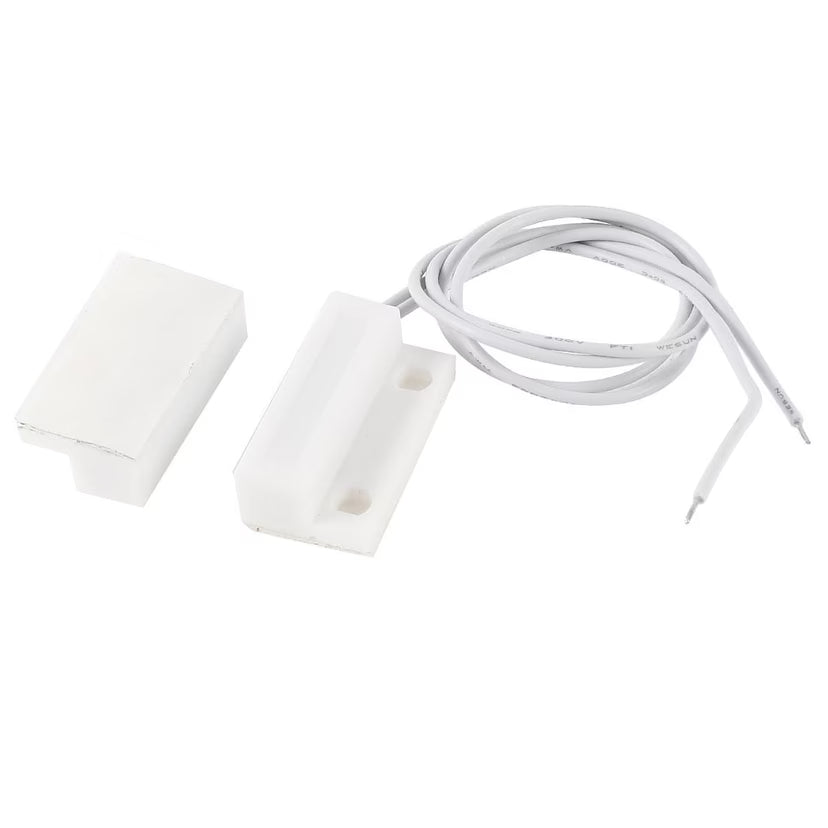

MC-38 Wired Door Window Sensor Magnetic Switch Home Alarm System
MC-38 Wired Door Window Sensor Magnetic Switch Home Alarm System
If you want to Apply Extra Security for your house then this Magnetic Switch is needed for you. This magnetic switch is used for triggering an alarm or ON/OFF light inside a cupboard sliding door In-home alarm systems you need many sensors like proximity sensors, Heat detection sensors, and Magnetic door sensors to determine the safety status of the home. In these sensors door sensors are important as these determine whether the gate is open or closed. This is an MC-38 Door Window Sensor Magnetic Switch Home Alarm System Normally Closed type which you can install on your door and use it with your home alarm system. It is very easy to install and conceal and can be easily used in places like your home, office, and hotels.

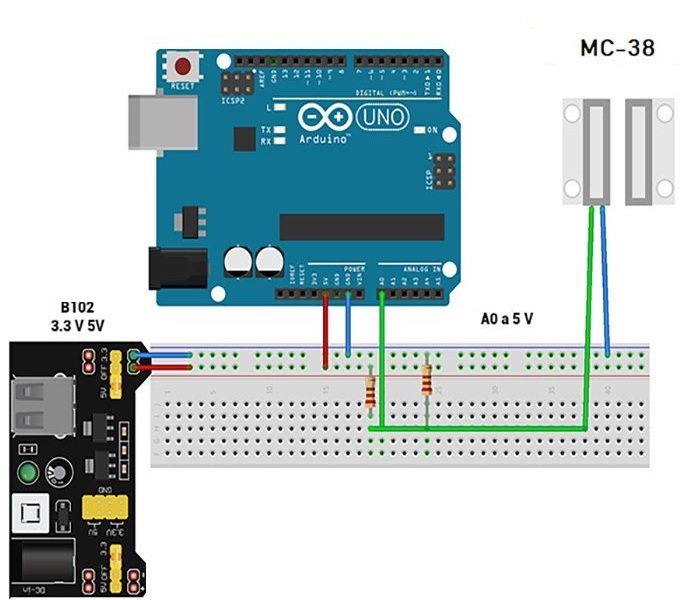

Connection Diagram of MC-38 With Arduino:
Features :
- Easy to install
- Strong concealment
- The magnetic sensor alarm, controls the switch of the circuit via the built-in magnet
- Alarm when someone intrudes into your places
- Can be used in places like apartments, hotels, offices, etc.
- Ideal for residential or commercial use.
- Designed to do embedded in the door or window frame.
Package Includes :

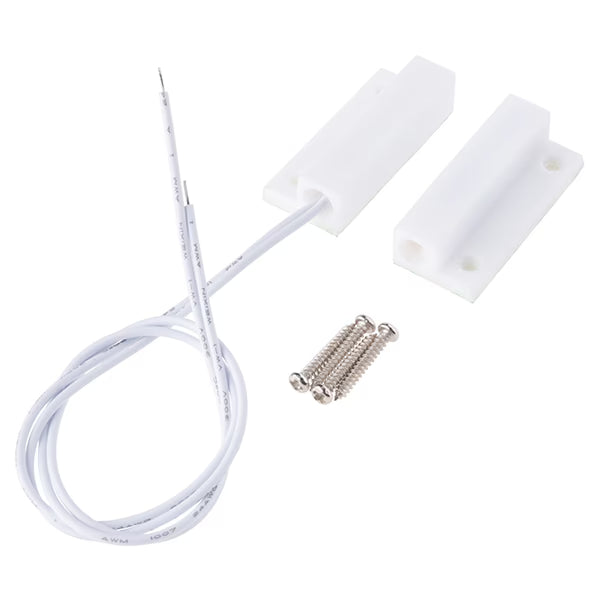

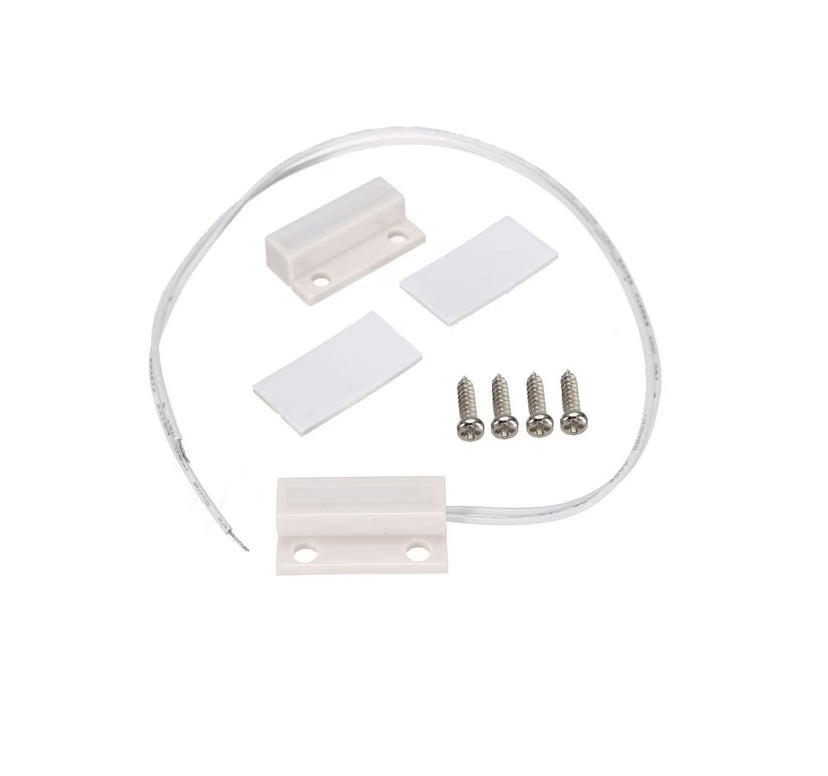

1 x MC-38 Wired Door Window Sensor Magnetic Switch Home Alarm System. 4 x M5 screws for fitting.
Specification :
| Connection type | Normally Close |
| Material: | Plastic |
| Color | White |
| Contact Capacity | 0.5A (Max. Switch Current) |
| Voltage (V) | 100V |
| Power Rating (W): | 10 |
| Additional Specs.: | Actuation Distance (mm): 15 to 25 |
| Cable Length (cm): | 30 |
| Length (mm): | 28 |
| Width (mm): | 14 |
| Weight (g): | 8 |
| Shipping Weight | 0.012 kg |
| Shipping Dimensions | 4 × 3 × 2 cm |
