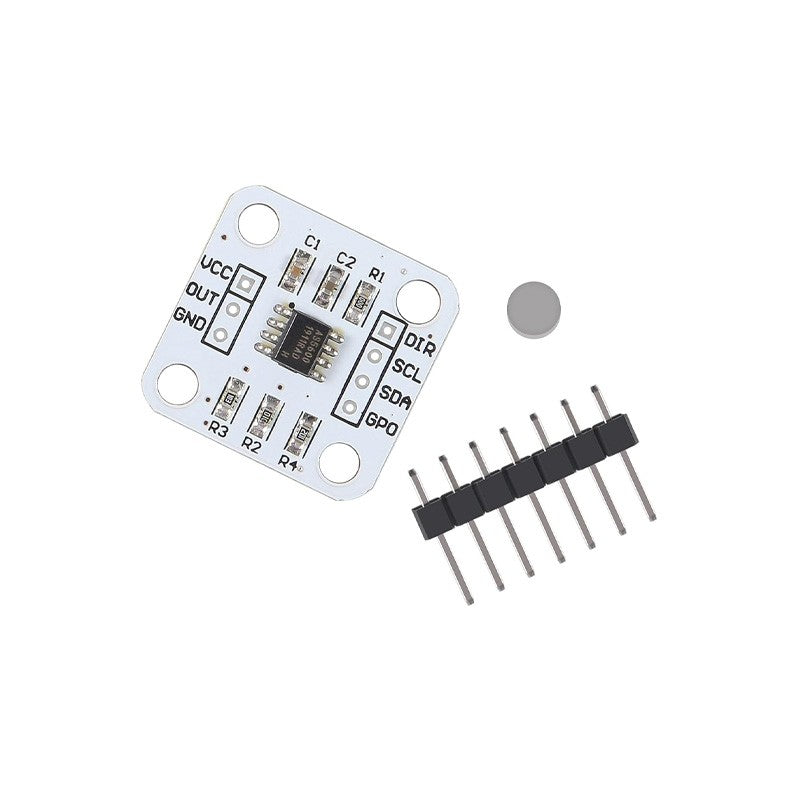

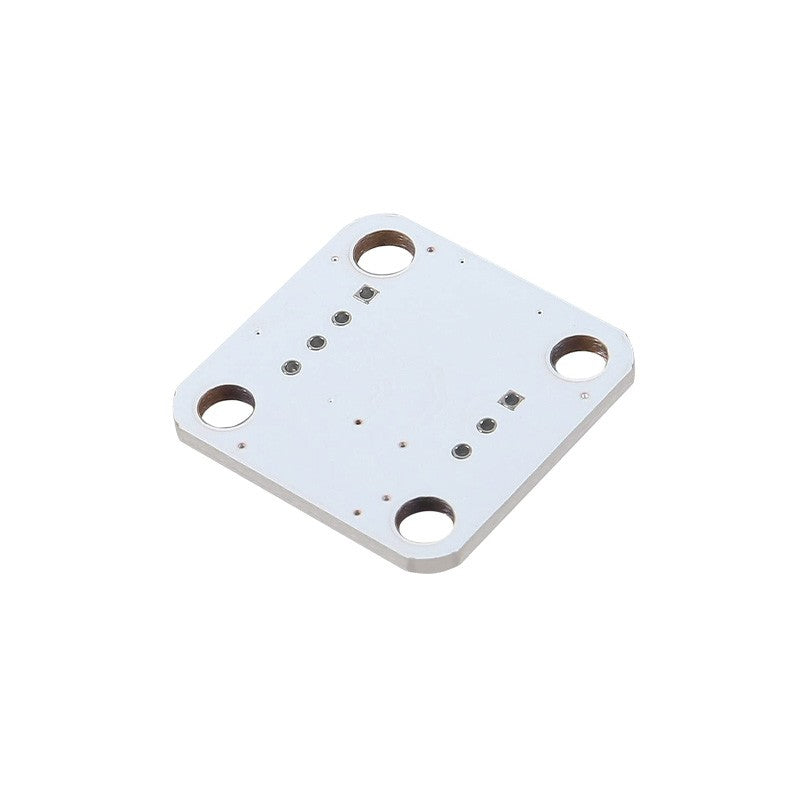

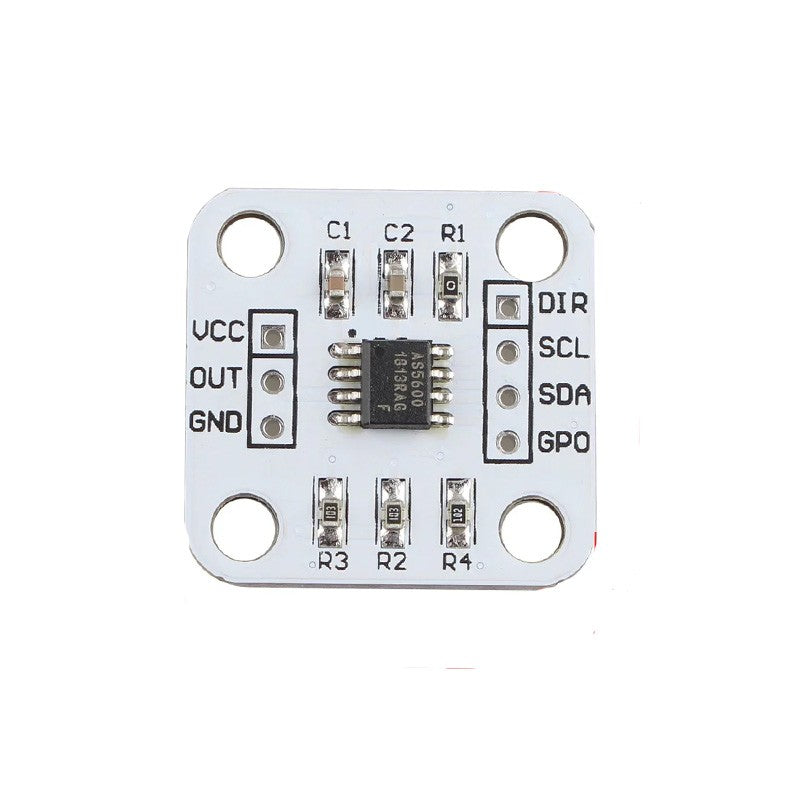

Magnetic encoder sensor module AS5600

The AS5600 Magnetic Encoder is a high-precision, non-contact magnetic angle sensor that detects rotational position by measuring changes in the magnetic field. It uses the Hall effect to convert magnetic variations into electrical signals, providing accurate feedback for a wide range of applications. With a 12-bit resolution and multiple output modes, this sensor is ideal for precise angle measurement in robotics, motor control, and 3D printing.

Features:

12-bit DAC Output Resolution: Provides 4096 positions per revolution for high precision.

Non-contact Magnetic Induction: Uses magnetic field changes to measure angle without physical contact.

Output Modes: Supports multiple output formats including I2C, PWM, and analog voltage.

Hall Effect Sensor: Uses the Hall element to measure magnetic field strength and output proportional voltage.

Wide Operating Temperature: Works reliably in environments from -40°C to 125°C.

Package Includes:

1 x Magnetic encoder sensor module AS5600

Specification:

Model Name: Magnetic encoder sensor module AS5600

Power Supply Voltage (V) 3.3V DC

Operating Temperature (°C): -40°C to 125°C

Interface: I2C, PWM, and analog voltage

Resolution: 12-bit DAC output

Shipping Weight 0.03 kg

Shipping Dimensions 3 × 1

× 3 cm
