Internal PCB Antenna for 2G / 3G / 4G Application
820011
Rs. 107.00
Sale price
Rs. 107.00
Regular price

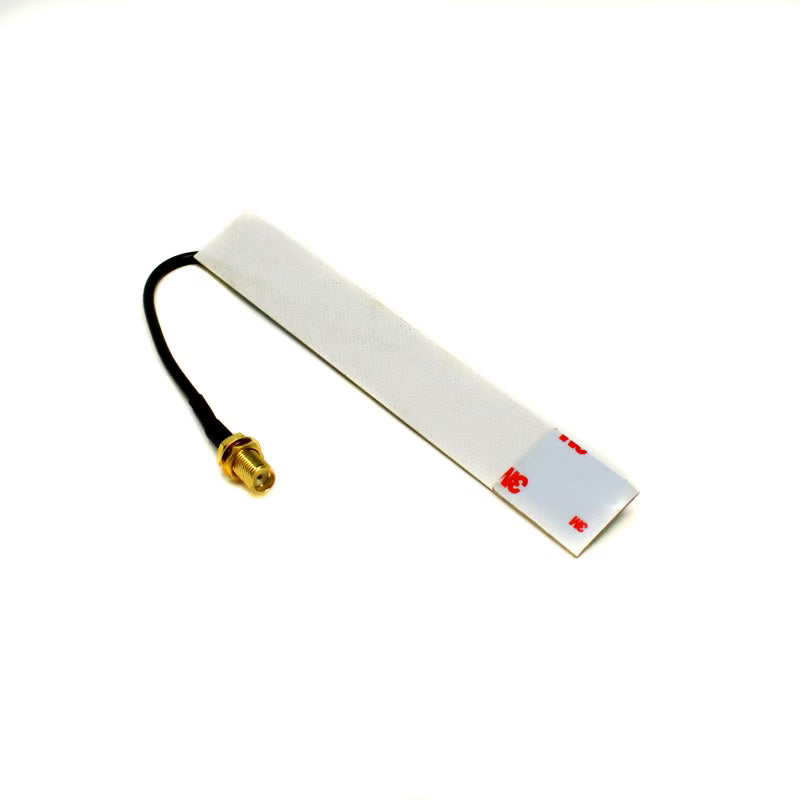

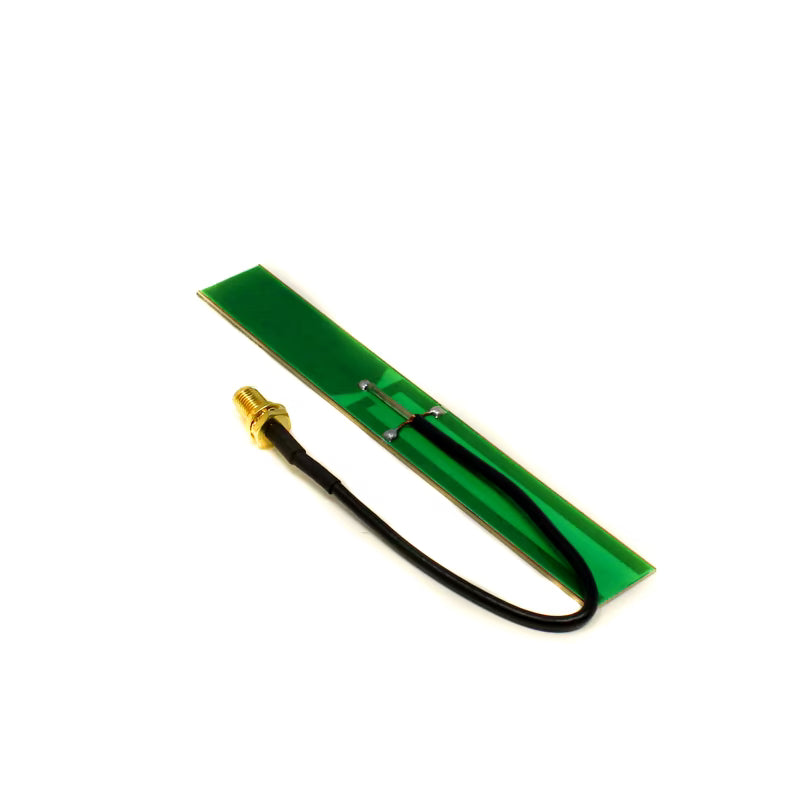

This is a PCB Antenna having a frequency of 698-960MHz & 1710-2690MHz with 1.5dBi gain. PCB Antenna is a wireless device to receive and transmit signals, it has been widely used in telecommunication to communicate. One of the main reasons to use a PCB (printed circuit board) antenna is the reduced overall cost of the radio module.
Application: 2G, 3G, 4G LTE, ISM
Features:
- Compact Size
- High quality
- Low cost
- 3M high-quality adhesive
- Masking for corrosion-free
Package Includes:
1 x Internal PCB Antenna for 2G / 3G / 4G Applications
Specification:
| Item Type: | PCB Antenna, Network Antenna |
| Model: | Network Functionality |
| Gain: | 0/1.5 dBi |
| VSWR: | <2.5 |
| Polarization | Linear |
| Power Handling (W) | 5 |
| HPBW | H: 3600 V: 300 /400 |
| Cable | Mini Coax 1.13mm/0.81mm/ RG178/ RG316 |
| Cable Length (cm): | As required (suggested up to 20cm) |
| Connector: | SMA Female |
| Operating Temperature (°C): | -30 to 60 |
| Humidity Range | 5 – 75% |
| Length (mm): | 127 |
| Width (mm): | 18 |
| Weight (g): | 5 |
| Shipping Weight | 0.001 kg |
| Shipping Dimensions | 1 × 1 × 1 cm |
